3G5358 / 3G5359
SAR / TIG
Provided
1 Year
excavator bucket teeth, bucket tooth
24.5kg
red, black, yellow
Earthmoving ground engaging for excavator , loader, backhoe ect
Provided
Available
High Spec Alloy steel T1,T2,T3
Engineering Machine Excavator,loader
SGS, ISO
Lost wax casting/ Sand Casting/ Forging
Standard, rock bucket, heavy duty bucket
Bulldozer bottom roller lower roller, track roller
Product Description
Caterpillar style left hand, 1 bolt corner loader adapter for a J350 series with a 1 1/4" - 1 1/2" lip thickness; takes a 1 1/4" X 4" plow bolt and a 1 1/4" cone nut. Quality aftermarket G.E.T. (bucket teeth) for Caterpillar (CAT), JCB, Bobcat, Takeuchi, John Deere, Case, Komatsu, Kubota and many others including manufacturers such as ESCO, Hensley, H&L for all your backhoe, loader, skid steer, grader, scraper and excavator bucket tooth (teeth) needs.
| Product Name: | Cat Excavator Bucket Teeth |
| Bucket Type: | Rock Bucket Teeth |
| Material: | Alloy steel |
| Color: | Red, black, yellow |
| Weight: | 24.5kg |
| Hardness: | 47-52HRC |
| Suitable For: | 3ton, 4ton, 8ton, 9ton Excavator, Loader,Bulldozer,etc. |
| Certification: | CE, , ISO9001:2008 |
Impact Value: | 17-21J |
| Place of Origin: | Zhejiang, China |
Material : Chemical Composition and Physical Performance for bucket teeth, bucket tooth
Bucket Tooth Material T1
C | Mn | Si | Cr | B | Ti | Al | Mo | Ni | S | P |
0.268-0.32 | 1.00-1.40 | 1.1-1.40 | 1.4-1.7 | 0.002-0.004 | 0.03-0.08 | 0.15-0.25 | 0.15-0.25 | ≤0.036 | ≤0.036 |
Tensive Strength(N/mm2) | Yield Point(N/mm1) | HRC | AKV (J) |
1500 | 1100 | 46-52 | ≥18 |
Bucket Tooth Material T2
C | Mn | Si | Cr | B | Ti | Al | Mo | Ni | S | p |
0.26-0.29 | 1.00-1.40 | 1.00-1.40 | 1.1--1.5 | 0.002-0.004 | 0.1-0.2 | ≤0.036 | ≤0.036 |
Tensive Strength(N/mm2) | Yield Point(N/mm1) | HRC | AKV (J) |
1450 | 1040 | 46-50 | 16 |
C | Mn | Si | Cr | B | Ti | Al | Mo | Ni | S | p |
0.26-0.29 | 1.00-1.40 | 1.00-1.40 | 1.1--1.5 | 0.002-0.004 | 0.1-0.2 | ≤0.036 | ≤0.036 |
Bucket Tooth Material T3
C | Mn | Si | Cr | B | S | P | ||||
0.24-0.28 | 0.9-1.3 | 0.6-1 | 0.8-1.2 | 0.002-0.004 | ≤0.035 | ≤0.035 |
Tensive Strength(N/mm2) | Yield Point(N/mm1) | HRC | AKV (J) |
1350 | 1000 | 44-48 | >14 |
NB STARKEA top 3 excavator bucket teeth manufacturer.
G.E.T Parts are used for Caterpillar, Komatus, JCB, Kobelco, Hyundai, Hitachi, ESCO, Volvo,John deere.ect
Bucket teeth shapes:
Standard bucket teeth (sharp) is used for general digging conditions for both loaders and excavators
Tiger bucket teethShape is single point excavator tooth used for penetrating compact soil conditions such as frost or Caliche.(Generally placed on the inside positions of the bucket)
Twin Tiger bucket teeth is a double pointed excavator tooth used for penetrating compact soil conditions such as frost or Clich? This is generally placed on outside positions of the bucket.
Star bucket Tooth is a heavier duty excavator tooth with a rib and not quite as pointed as a tiger tooth. This tooth has a rib that self sharpen the tooth and creats a longer wearing product.
Flare Tooth is used on an excavator bucket and is positioned close together for smooth bottoms in trenches or footers. It is not a good digging tooth for rock or compact soils.
Mini Tooth Point Forged Excavator Bucket Teeth Type
| 1U1858 | 15.1 | UNIT TOOTH BOLT ON |
| 1U1859 | 15.1 | UNIT TOOTH BOLT ON |
| 1U1877 | 12.4 | UNIT TOOTH BOLT ON |
| 1U1878 | 23 | UNIT TOOTH BOLT ON |
| 1U1879 | 23 | UNIT TOOTH BOLT ON |
| 1U1888 | 29.5 | UNIT TOOTH BOLT ON |
| 1U1889 | 29.5 | UNIT TOOTH BOLT ON |
| 3G0169 | 4 | ADAPTER | CAT | J250 |

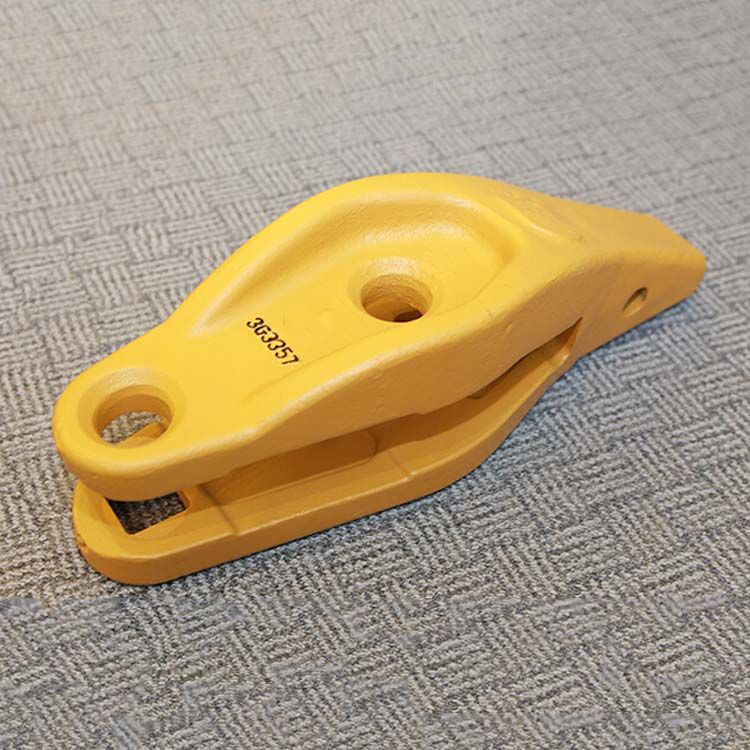

| 3G3357 | 18 | BOLT-ON ADAPTER | CAT | J350 |
| 3G4258 | 10 | CORNER ADAPTER | CAT | J250 |
| 3G4259 | 10 | CORNER ADAPTER | CAT | J250 |
| 3G4307/4T4307 | 12.7 | ADAPTER | CAT | J350 |
| 3G4308 | 15.5 | CORNER ADAPTER | CAT | J300 |
| 3G4309 | 15.5 | CORNER ADAPTER | CAT | J300 |
| 3G5307 | 14 | BOLT-ON ADAPTER | CAT | J300 |
| 3G5358 | 24.3 | CORNER ADAPTER | CAT | J350 |
| 3G5359 | 24.3 | CORNER ADAPTER | CAT | J350 |
| 9W1304/3G6304 | 7.8 | WELD-ON ADAPTER | CAT | J300 |
| 3G6305 | 7.5 | WELD-ON LEFT ADAPTER | CAT | J300 |
| 3G6306 | 7.5 | WELD-ON RIGHT ADAPTER | CAT | J300 |
| 3G9307 | 14 | BOLT-ON ADAPTER | CAT | J300 |
| 3G8308 | 17 | CORNER ADAPTER | CAT | J300 |
| 3G8309 | 17 | CORNER ADAPTER | CAT | J300 |
| 3G8319 | 14.3 | END BIT | ||
| 3G8320 | 14.3 | END BIT | ||
| 3G8354 | 9 | WELD-ON ADAPTER | CAT | J350 |
| 3G8354/8J4310 | 9 | WELD-ON ADAPTER | CAT | J350 |
| 6I6354 | 9 | WELD-ON ADAPTER | CAT | J350 |
| 3G8355/6I6355 | 9.1 | WELD-ON ADAPTER | CAT | J350 |
| 3G8356/6I6356 | 9.1 | WELD-ON ADAPTER | CAT | J350 |
| 4T1204 | 2.08 | WELD-ON ADAPTER | CAT | J200 |
| 9J4203/4T2203 | 1.8 | TEETH ABRASION | CAT | J200 |
| 4T2253 | 3.5 | TEETH ABRASION | CAT | J250 |
| 4T2303 | 5.3 | TEETH ABRASION | CAT | J300 |
| 4T4307 | 12.7 | BOLT-ON ADAPTER | CAT | J300 |
| 4T4501/4T5501 | 25 | RIPPER TEETH | CAT | D9L,D10,D10N,D11,D11N |
| 4T5503 | 29.3 | RIPPER TEETH | CAT | D9L,D10,D10N,D11,D11N |
| 4T5502/4T4502 | 28 | RIPPER TEETH | CAT | D9L,D10,D10N,D11,D11N |
| 4T6694 | 10.2 | SEGMENT | CAT | |
| 4T4702RC | 50 | TEETH ROCK | CAT | J700 |
| 4T4704 | 72 | WELD-ON ADAPTER | CAT | J700 |
| 4K6936 | 1.6 | TEETH | CAT | 23 |
| 5B6251 | 5.5 | RIPPER SHANK | CAT | |
| 5V4311 | 9.5 | RIPPER SHANK | CAT | |
| 6I6354 | 9.2 | WELD-ON ADAPTER | CAT | J350 |
| 6I6354 | 9 | WELD-ON ADAPTER | CAT | J350 |
| 6I6354 | 9.3 | WELD-ON ADAPTER | CAT | J350 |
| 6I6404 | 12.8 | WELD-ON ADAPTER | CAT | J400 |
| 6I6404 | 13 | WELD-ON ADAPTER | CAT | J400 |
| 6I6405 | 12.3 | WELD-ON ADAPTER | CAT | J400 |
| 6I6406 | 12.3 | WELD-ON ADAPTER | CAT | J400 |
| 6I6464/8E6464 | 20.5 | WELD-ON ADAPTER | CAT | J460 |
| 6I6464 | 20.3 | WELD-ON ADAPTER | CAT | J460 |
| 6I6464 | 21 | WELD-ON ADAPTER | CAT | J460 |
| 6I6554/1U1553 | 34 | WELD-ON ADAPTER | CAT | J550 |
| 6I6554 | 34 | WELD-ON ADAPTER | CAT | J550 |
| 6I6602 | 34 | TEETH STANDARD LONG | CAT | J600 |
| 6I6602RC | 39 | TEETH ROCK | CAT | J600 |
| 6I6604 | 54 | WELD-ON ADAPTER | CAT | J600 |
| 6Y0309 | 5.2 | RIPPER TEETH | CAT | D4, 941, 951,955, 963,12, 14, 130, 140,143H, 160H |
| 6Y0359/6Y0352 | 11 | RIPPER TEETH | CAT | 16,973, 977,D5, D6,D7,983, |
| 6Y0469/1U1567 | 23.5 | BOLT-ON MONOBLOCK TEETH | CAT | J350 |
| 6Y2553 | 34 | TEETH HEAVY DUTY ABRASION | CAT | J550 |
| 6Y3222 | 34 | TEETH STANDARD LONG | CAT | J225 |
| 6Y3222RC | 2.8 | TEETH ROCK | CAT | J225 |
| 6Y3224 | 3 | WELD-ON ADAPTER | CAT | J225 |
| 6Y3254 | 3.8 | WELD-ON ADAPTER | CAT | J250 |
| 6Y5230 | 1.3 | SCARIFIER TEETH | CAT | 12, 14, 112,130, 140 |
| 6Y7409 | 8.8 | TEETH PENETRATION | CAT | J400 |
| 6Y8229 | 2 | TEETH PENETRATION | CAT | J225 |
| 6Y6335/9W1879/135-8203 | 3.3 | BOLT-ON MONOBLOCK TEETH | CAT | J200 |
| 7I7609 | 30 | TEETH PENETRATION | CAT | J600 |
| 7K6908 | 6.7 | CAT | ||
| 7T3401 | 8.2 | TEETH SHORT | CAT | J400 |
| 7T3402 | 9 | TEETH STANDARD LONG | CAT | J400 |
| 7T3402 | 10.5 | TEETH STANDARD LONG | CAT | J400 |
| 7T3409TL/6Y5409 | 9.5 | TEETH TIGER | CAT | J400 |
| 7T3402WTL/135-9408 | 10.4 | TEETH TWIN TIGER | CAT | J400 |
| 7T3402RC | 9.5 | TEETH ROCK CHISEL | CAT | J400 |
| 7T3402RC | 9.88 | TEETH ROCK CHISEL | CAT | J400 |
| 7T3403 | 13.5 | TEETH ABRASION PENETRATION | CAT | J400 |
| 227-3665 | 5 | SIDE CUTTER | CAT | D424 . |
| 227-3666 | 5 | SIDE CUTTER | CAT | D424 . |
| 112-2487/096-4747 | 11.2 | SIDE CUTTER | CAT | E200/E320 |
| 112-2488/096-4748 | 11.2 | SIDE CUTTER | CAT | E200/E320 |
| 7Y0358 | 18.9 | SIDE CUTTER | CAT | E330 |
| 7Y0359 | 18.9 | SIDE CUTTER | CAT | E330 |
| 8E1637 | 16 | UNIT TOOTH BOLT ON | CAT | J300 |
| 8E4222 | 3.1 | TEETH HEAVY DUTY LONG | CAT | J225 |
| 8E0464 | 23.5 | ADAPTER | CAT | J460 |
| 8E4402 | 11.5 | TEETH HEAVY DUTY LONG | CAT | J400 |
| 8E6464/6I6464 | 20.6 | WELD-ON ADAPTER | CAT | J460 |
| 8E5308 | 17.6 | CORNER ADAPTER | CAT | J300 |
| 8E5309 | 17.6 | CORNER ADAPTER | CAT | J300 |
| 8E5358 | 23 | CORNER ADAPTER | CAT | J350 |
| 8E5359 | 23 | CORNER ADAPTER | CAT | J350 |
| 8E8418 | 76 | RIPPER SHANK | CAT | D8,D9 |
| 8J7525 | 1.4 | WELD-ON ADAPTER | CAT | J200 |
| 8J7525 | 1.5 | WELD-ON ADAPTER | CAT | J200 |
| 9F5124 | 5.4 | SCARIFIER SHANK | CAT | 12, 14, 112,130, 140 |
| 9J4207 | 3.2 | BOLT-ON ADAPTER | CAT | J200 |
| 9J4259 | 2.5 | TEETH PENETRATION | CAT | J250 |
| 9J4309 | 3.6 | TEETH PENETRATION | CAT | J300 |
| 9J4359 | 5.5 | TEETH PENETRATION | CAT | J350 |
| 9J6586 | 24 | RIPPER SHANK-STRAIGHT | CAT | D4, 941, 951,955, 963,12, 14, |
| 9J8910/6Y0309 | 5.2 | RIPPER TEETH | CAT | D4, 941, 951,955, 963,12, 14, |
| 9J8920/6Y0359 | 11 | RIPPER TEETH PENETRATION LONG | CAT | 16,973, 977,D5, D6,D7,983, |
| 9J8929 | 8 | WELD-ON ADAPTER | CAT | J300 |
| 9N4252 | 4.2 | TEETH HEAVY DUTY LONG | CAT | J250 |
| 9N4253 | 4.55 | TEETH HEAVY DUTY ABRASION | CAT | J250 |
| 9N4302 | 5.5 | TEETH HEAVY DUTY LONG | CAT | J300 |
| 9N4303 | 7.2 | TEETH HEAVY DUTY ABRASION | CAT | J300 |
| 9N4352 | 8.6 | TEETH HEAVY DUTY ABRASION | CAT | J350 |
| 9N4353 | 11 | TEETH HEAVY DUTY ABRASION | CAT | J350 |
| 9N4452 | 17.5 | TEETH HEAVY DUTY LONG | CAT | J460 |
| 9N4453 | 21.4 | TEETH HEAVY DUTY ABRASION | CAT | J460 |
| 9N4552 | 26 | TEETH HEAVY DUTY LONG | CAT | J550 |
| 9W2451 | 13.8 | RIPPER TEETH | CAT | D8K,D8L,D8N,D9H,D9N |
| 9W2451 | 15.7 | RIPPER TEETH | CAT | D8K,D8L,D8N,D9H,D9N |
| 9W2452 | 17 | RIPPER TEETH | CAT | D8K,D8L,D8N,D9H,D9N |
| 9W4551 | 46.5 | RIPPER TEETH | CAT | D11SS D11DR |
| 9W8451 | 11.5 | TEETH SHORT | CAT | J460 |
| 9W8452 | 12.4 | TEETH STANDARD LONG | CAT | J460 |
| 9W8452R/9J4452 | 11.5 | TEETH ROCK | CAT | J460 |
| 9W8452RC/1U3452RC | 15 | TEETH ROCK CHISEL | CAT | J460 |
| 9W8452T/1U3452TL/7T8459 | 13.5 | TEETH TIGER | CAT | J460 |
| 9W8452WTL/138-6458 | 15 | TEETH TWIN TIGER | CAT | J460 |
| 9W8459 | 10 | TEETH PENETRATION | CAT | J460 |
| 9W8551 | 15.5 | TEETH SHORT | CAT | J550 |
| 9W8552 | 19.5 | TEETH STANDARD LONG | CAT | J550 |
| 9W8552RC | 23 | TEETH ROCK | CAT | J550 |
| 9W8552RCL | 22.7 | TEETH FISH SCALE | CAT | J550 |
| 9W8552T/1U3552TL/9W6559 | 22.5 | TEETH TIGER | CAT | J550 |
| 9W8559 | 15.5 | TEETH PENETRATION | CAT | J550 |
| 4V0668 | 7.4 | COMPACTOR | CAT | 825C |
| 4V3851 | 4.4 | COMPACTOR | CAT | 815, 815B |
| 7K2939 | 7 | COMPACTOR | CAT | 824B,825B |
| 8K9189 | 3.9 | COMPACTOR | CAT | 815 |
| 2V6628 | 5.8 | COMPACTOR | CAT | 825C,835 |
| 8K9171 | 6.8 | COMPACTOR | CAT | 825C,835 |
| Packaging Details: | Standard Export Wooden Carton for excavator bucket teeth, pin, adapter | |||
| Port: | Ningbo/Shanghai Port | |||
| Lead Time: | Quantity(Kilograms) | 1 - 1000 | 1001 - 10000 | >10000 |
| Est. Time(days) | 7 | 25 | To be negotiated | |
Production Process
Used for construction machinery and mining machines like excavators, motor graders, wheelloaders, bulldozers, scrapers, our products are made of high quality materials with stable chemical composition and complete heat treament.
Carbon steel, stainless steel, alloy steel, grey iron ,ductile iron ,aluminum and copper are often used to make stamping and machinery parts. According to clients' samples or drawings, we can also make customized investment casting, die casting, and sand casting.
