With the continuous transformation of urbanization and the popularization of agricultural mechanization, the domestic labor cost is constantly increasing, and many machines are favored by users for their portable models, simple structure, small tonnage and appropriate price. In many engineering vehicles, excavator undercarriage parts play a very important role. This article introduces some knowledge of undercarriage parts.
The original parts of system one undercarriage mainly include track chain, track plate, sprocket, idler, track and support roller. The track chain consists of chain pins, sleeves and chain links cast by special steel and quenched. The sprocket has good wear resistance, the idler can fully distribute load and tension, and many dozer undercarriage parts need quenching treatment.
In engineering vehicles, crawler-type walking mechanism is widely used in hoisting machinery, earth-moving machinery and drilling machinery because of its wide adaptability to road conditions, large traction force, strong passing capacity, small specific grounding pressure, good stability and small turning radius. There are many factors that affect the walking performance of track chain. If the design is unreasonable and thoughtless, there will be some problems such as difficulty in walking and steering, poor acceleration performance and so on, which will greatly affect the service performance of the track link excavator.
There are several factors that affect the walking performance of track chain: the running resistance of ground to track refers to the running resistance caused by ground deformation, which is related to the specific pressure of track grounding, the position of vehicle centroid and ground conditions. Internal resistance mainly refers to the walking resistance caused by the friction inside the excavator undercarriage for sale. General crawler walking mechanism is composed of driving mechanism, crawler belt, roller, guide wheel, sprocket or chain plate. When walking, the friction between these mechanisms will definitely produce certain internal resistance. There are also slope resistance, wind resistance, inertia resistance and so on, which will have an impact on the track chain.
Track plates are designed to make track roller excavators adapt to different terrains. Different track plates have different numbers of ground gripping teeth. Generally speaking, excavators use three-tooth track plate, while bulldozers use single-tooth track plate. Track plates with different widths can be selected according to different terrains and machine weights. Many track plates of the carrier roller excavator are made of heat-treated steel plates, so they have great wear resistance, can bear great weight and have a long service life.
The tooth shape of the sprocket must ensure that the chain can enter and exit the meshing smoothly and energy-saving, minimize the impact and contact stress of the chain links during meshing, and be easy to process. Idler gear refers to a gear that plays a transmission role between two transmission gears that are not in contact with each other, and meshes with the two gears at the same time, which is used to change the rotating direction of the driven gear and make it the same as the driving gear. The function of excavator track idler is only to change the steering and not the transmission ratio.

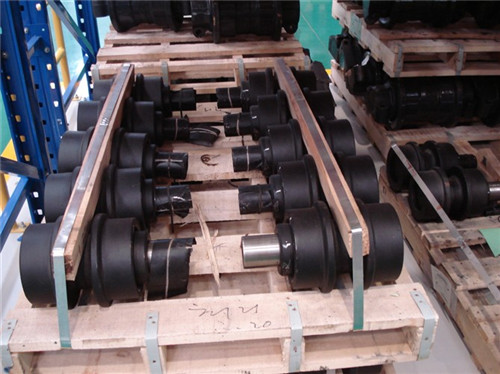

Tracks and supporting rollers are very important for the whole value parts undercarriage. Tracks and supporting rollers will use proper castings, precise treatment and induction quenching, so they have great wear resistance, which not only prolongs the service life of undercarriage excavator parts, but also ensures that they can wear evenly.
