How to Choose Accurate Bucket Teeth?

There are many kinds of bucket teeth, such as mini digger bucket teeth, welding excavator bucket teeth, excavator rock teeth, etc. According to different working conditions, it is common to choose the appropriate excavator bucket teeth type of excavators and loaders, and match with the best tooth profile. But because the system is so complicated, most new customers don't know how to decide the type of tooth.



According to the following different characteristics and advantages, the following are some suggestions on how to choose accurate excavator bucket teeth.





Different Types of Bucket Teeth

Different shapes of bucket tip types are: Standard Long (STD), Rock Chisel (RC), Tiger Long (TL), Heavy Long (HD), Twin Tiger (WTL), Penetration (PT), Rock Penetrator (RP), etc.



Standard Long (STD) tooth is a good choice for the most basic applications. As a multi-purpose, general duty tooth, it can be used for all types of machines. It is suitable for all sizes of equipment.



Rock Chisel (RC) is most suitable for use on rock or hard ground. It can stay sharp throughout life. Good leverage can reduce the pressure on the machine and bucket, which can improve performance and service life.



Tiger Long (TL) has unparalleled penetrating power under frost, rock, or hard bottom shell conditions. It can keep sharp. There are few wear-resistant materials, so its life span is short.



Heavy Duty Long (HD) is like the standard long, but it has the longest wear life of all tooth profiles.



The Chisel (CH) tooth is built for rock applications. CH or chisel tooth is a universal application design. Due to its good penetrability and self-sharpening symmetrical profile, it is usually the first choice in rock applications. CH provides a good balance between penetration and wear. Pay attention that the CH is not for use on loaders.



The next one is called TG. This type of gear is called tiger tooth in the industry and is designed for excavators and backhoes. The sole purpose of TG style is to penetrate any material to the maximum. Due to its symmetrical shape, it reduces the area of the tooth body, making it the best choice for penetrating tightly compacted soil, clay and even rocks.



Loader (LD) teeth are specially designed for loaders. The bottom of the teeth is aligned with the bottom of the horizontal loader bucket, resulting in a clean floor.



Twin Tiger (TT) teeth have two points designed for optimal penetration. This wider style is usually used with TG teeth installed at the outer corner of the bucket to maximize clearance during the digging cycle.

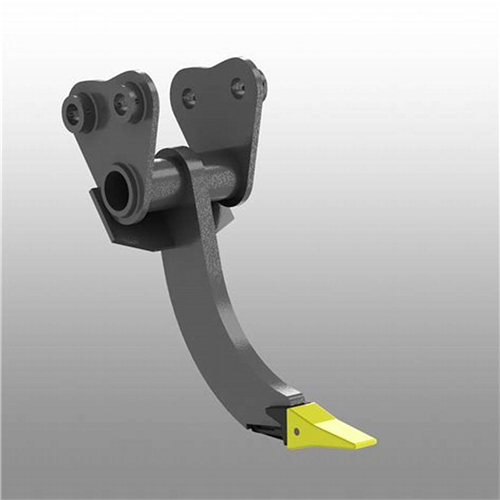

In addition, other types of bucket teeth are also recommended, such as mini excavator teeth, ripper tooth for mini excavator, Doosan bucket teeth, etc.

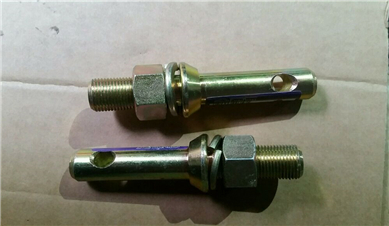

NB STARKEA is one of the leading manufacturers of ground engaging tools and other construction and mining spare parts. We specialize in many products, such as volvo bucket teeth, implement mounting pins, tractor 3-point hitch pins, etc. if you are planning to purchase products in this field, welcome to contact us.
